MICROLENS: New Versatile µ-Imprinting Process of Refractive Index Gradient
Domains
Health and wellbeing
Energy
Digital
Technologies
Sensors
Imaging Technologies for Health
Nanoelectronics
Applications
This technology is a new imprinting method allowing to manufacture micro-GRIN optics (micro-lenses, waveguides…) with unique properties useful in many fields as:
- Infrared camera,
- Microscopy,
- Plenoptic camera,
- Laser applications,
- CMOS and CCD sensors,
- Photovoltaic.

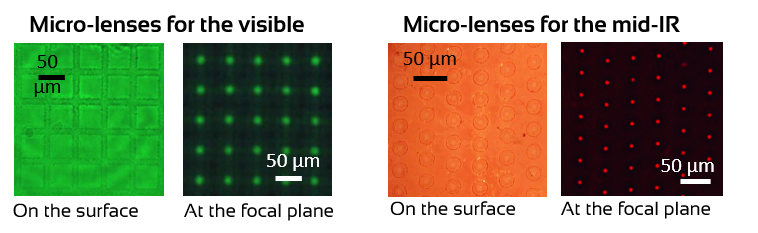

Description
The optical elements are directly formed on a wide variety of vitreous compositions to target transmission from visible to mid-IR spectral domain.
Specifications
- Transmission window: visible or mid-IR (350 nm to 10 µm) depending on the glass composition
- Large variety of structures (dots, squares, lines…) from 2 µm to 300 µm – on demand.
|
Glass |
Array surface (mm²) |
Micro-lense diameter (µm) |
Micro-lense focal length (µm) |
Transmission window |
|
BPN |
0.5 |
2 - 7 |
5 - 15 |
Visible |
|
Soda-lime |
1 - 100 |
5 - 40 |
15 - 1000 |
Visible |
|
Chalcogenide |
1 - 30 |
15 - 40 |
20 - 1000 |
IR |
Inventors
Marc DUSSAUZE
Institute of Molecular Sciences (ISM, UMR 5255)
IP
This technology is the subject of a European patent application
